Pressure Sensors


대표전화 02.6123.3222~4 팩스번호 02.6123.3220
  • Honeywell silicon pressure sensors are small, low cost, and reliable. They feature excellent repeatability. high accuracy. and reliability under varying environmental conditions. Inaddition, they feature highly consistent operating characteristics from one sensor to the nest and interchangeability without recalibration. Pressure sensors contain sensing elements that consist of four poezoresistors buried in the face of a thin, chemically-etched silicon diaphragm. Apressure change causes the diaphragm to flex, inducing a stress or strain in the diaphragm and the bured resistors. The resistor values change in proportion to the stress apploed and produce an electrical out put.
  • We offer three pressure sensor measurement types absolute, dufferential and gage including vacuum gage and bidirectional types. A wide variety of pressure ranges are available in both amplified and non- amplified versions.
  • We also feature a comprehensive line fo miniature silicon pressure sensors to meet the needs of OEM sensor designers. Industry-standard packaging. precision calibration, and complete signal conditioning ard available in one of the largest arrays of piezoresistive micromachined pressure sensors with pressure ranges from 0.5 in H


  • 컴퓨터 관련
  • 의료기
  • 공조기기 (HVAC)
  • 계측기 (Instrumentation)
  • 산업용기계 (Industrial Equipment)
  • 우주항공 (Aerospace)

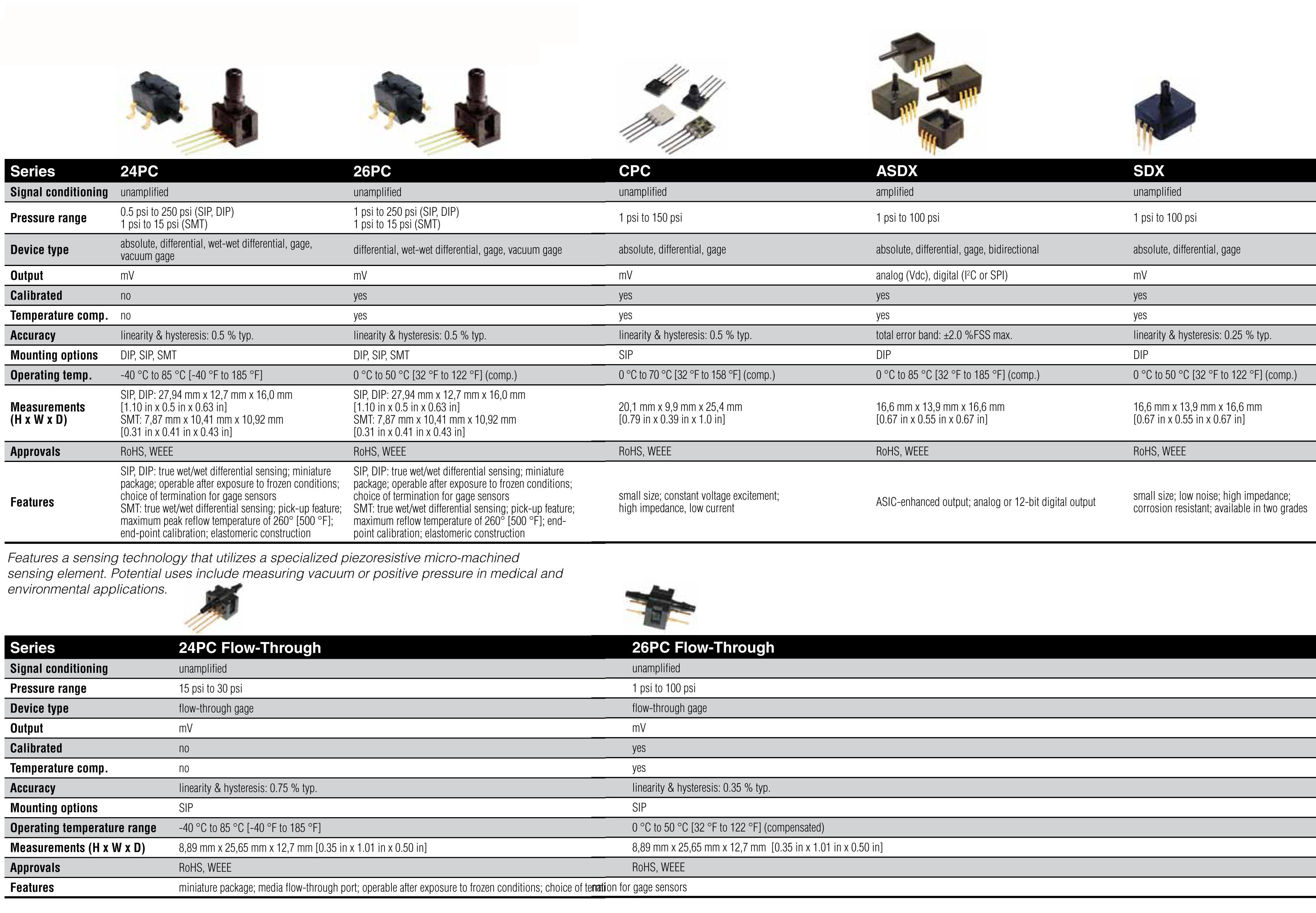

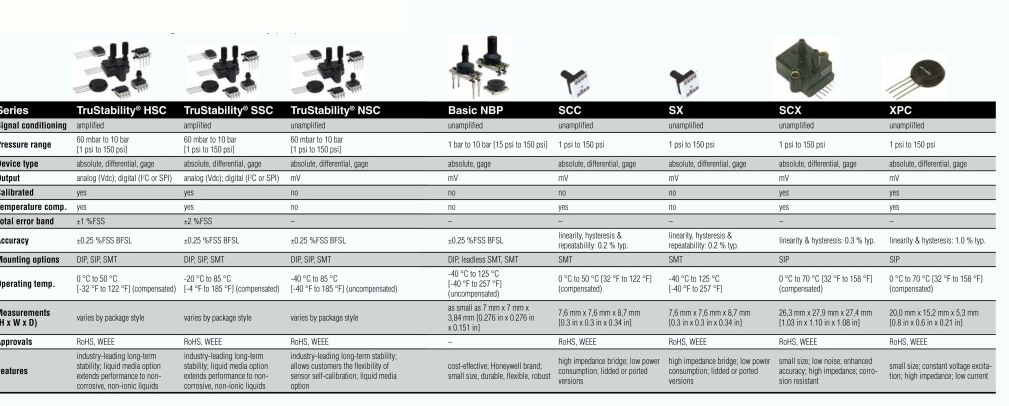

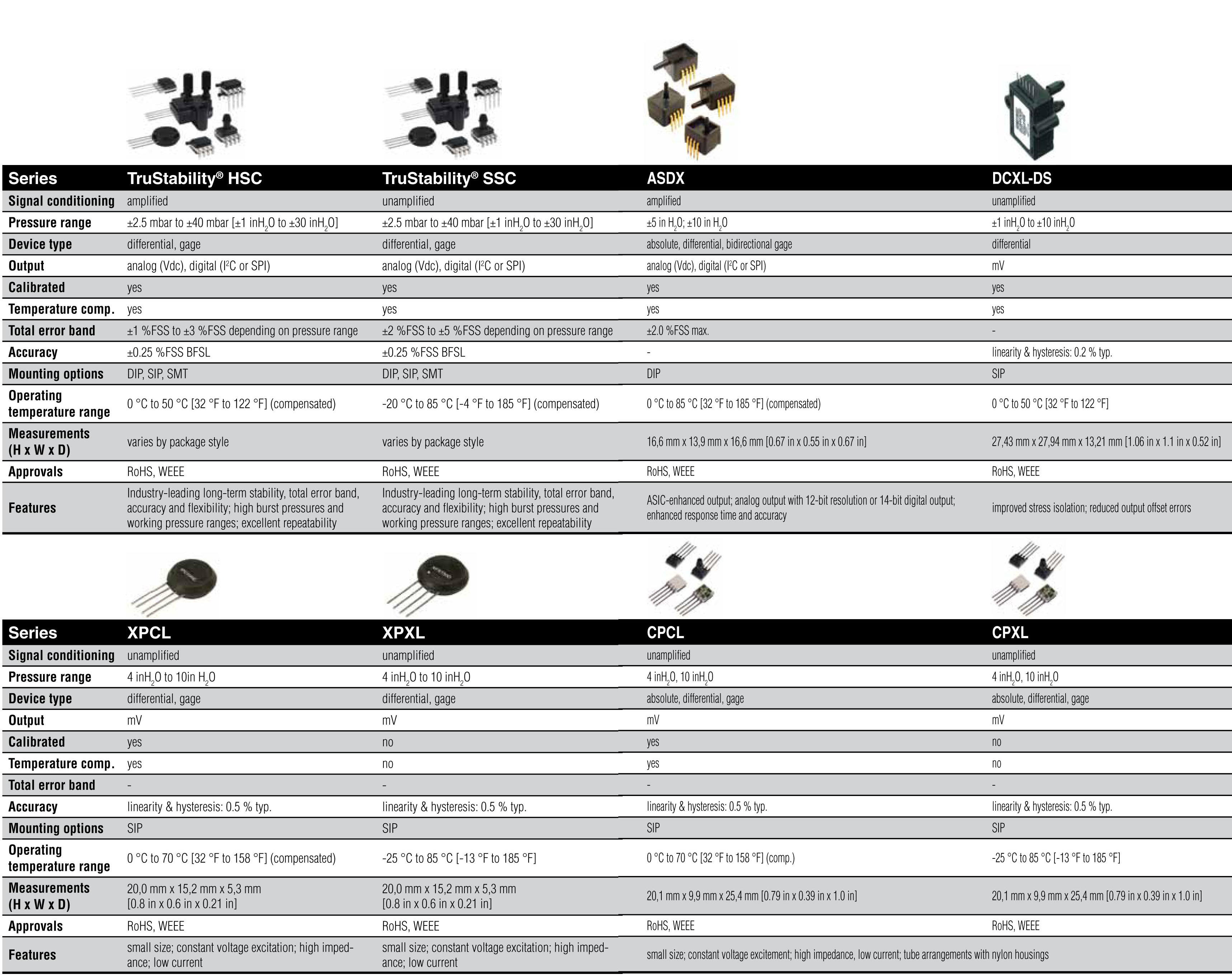

Board Mount Pressure Sensors

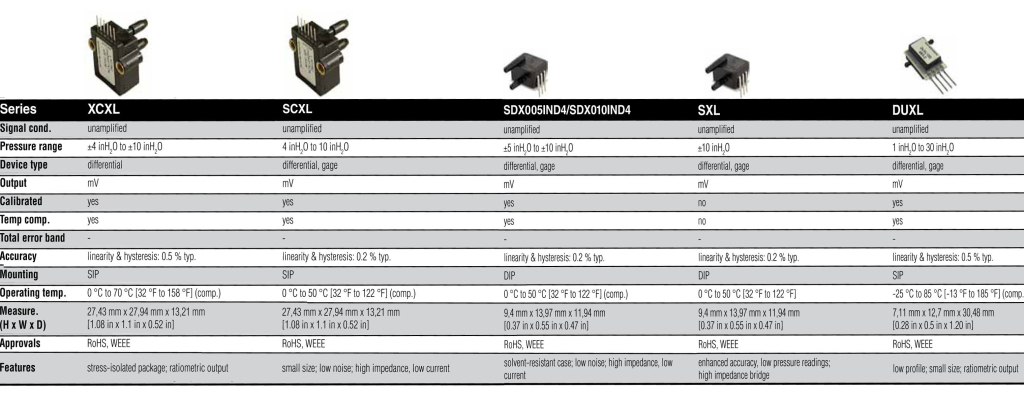

  • Ultra Low Pressure (〈 1 psi)
  • Low to Mid and Pressure Flow-Through
  • Low to Mid

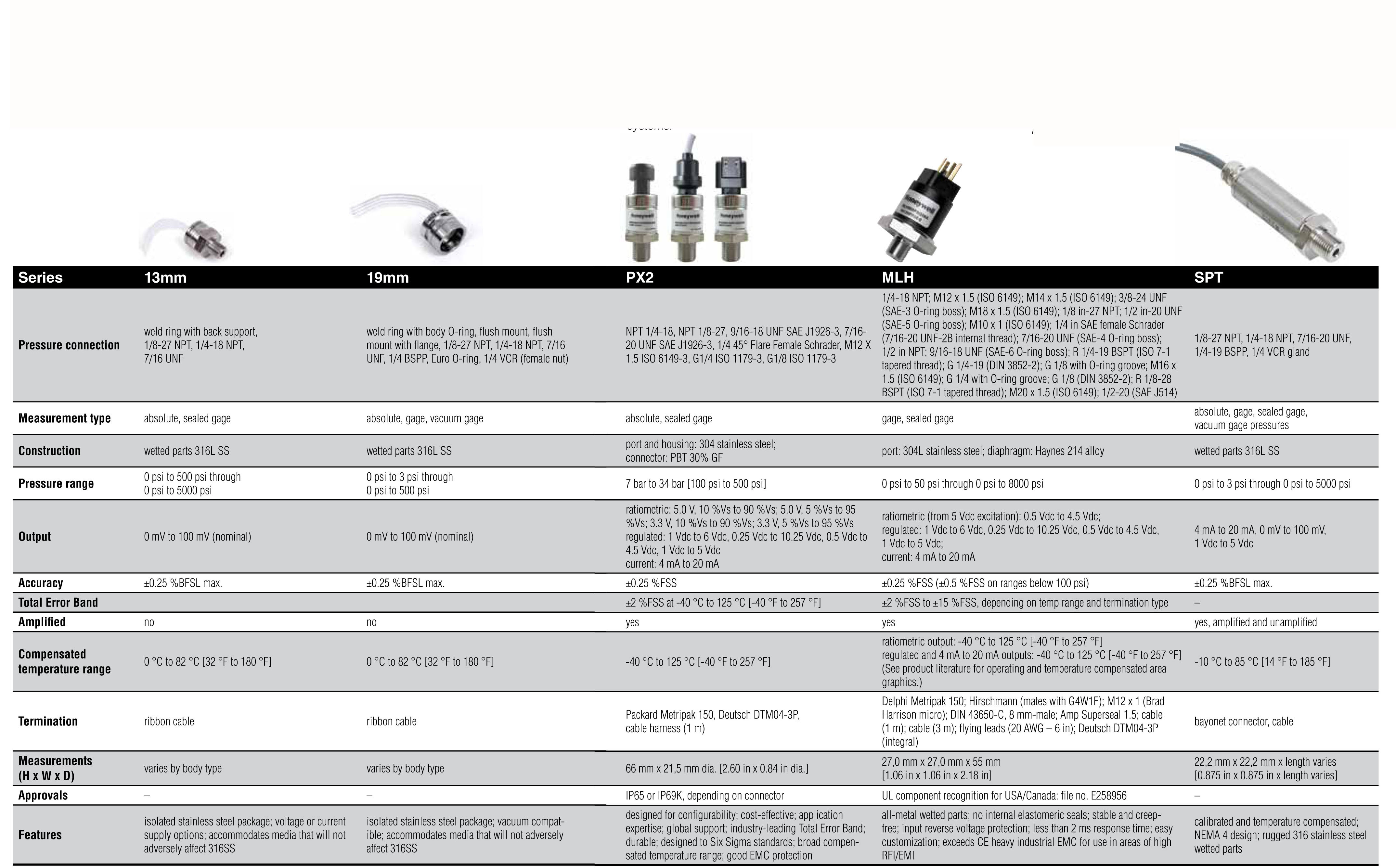

Pressure Sensors and Transducers
자세한 설명은 기술자료실 참조 바랍니다.
